Standard-cure, water-clear urethane casting resin with low viscosity.UV resistantShore hardness: 80 DMix ratio: 100A:90B by weightWorking time: 20 minCure time: 16 hrsTensile strength: 17.2 MPa
WARNING! This article is for professional use only.
(€ 71.89 without 21% VAT)
| Color | Clear |
| Mixed Viscocity | 600 cps |
| Cure Time | 48 hours |
| Pot Life | 2 hours |
| Flexural Strength | 5,390 psi |
| Flexural Modulus | 183,200 psi |
| Specific Volume | 26.7 cu. in./lb. |
| Specific Gravity | 1.036 g/cc |
| Mix Ratio By Weight | 100A:90B |
| Shrinkage | 0.002 in. / in. |
| Tensile Strength | 3,500 psi |
| Elongation At Break | 10 % |
| Shore D Hardness | 80 |
| Heat Deflection Temp | 120 °F |
| Compressive Strength | 4,200 psi |
| Tensile Modulus | 86,240 psi |
| Compressive Modulus | 44,000 psi |
Standard-cure, water-clear urethane casting resin with low viscosity.UV resistantShore hardness: 80 DMix ratio: 100A:90B by weightWorking time: 20 minCure time: 16 hrsTensile strength: 17.2 MPa
Slow-cure, water-clear urethane casting resin. Low viscosity and UV resistant.Shore Hardness: 80 DMix Ratio: 100A:90B by weightWorking time: 4.5 hoursCure Time: 7 daysUV resistantNot brittle
Medium cure time, water-clear, urethane casting resin with low viscosity and UV resistance.Shore Hardness: 80 DMix Ratio: 100A:90B by weightWorking time: 2 hoursCure Time: 48 hoursUV Resistant
Fast-cure, water-clear urethane casting resin with low viscosity and UV resistance.Shore Hardness: 80 DMixing ratio: 100A:90B by weightWorking time: 9 minutesCure Time: 90 minutesUV Resistant
| Product | Color | Color | Mixed Viscocity | Cure Time | Pot Life | Flexural Strength | Flexural Modulus | Specific Volume | Specific Gravity | Mix Ratio By Weight | Shrinkage | Tensile Strength | Elongation At Break | Shore D Hardness | Heat Deflection Temp | Compressive Strength | Tensile Modulus | Compressive Modulus |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

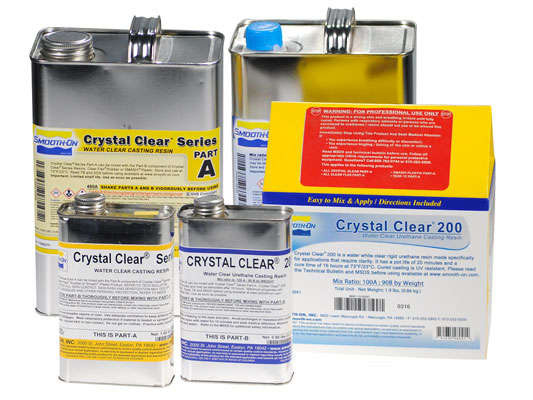

| Crystal Clear™ 200 | Clear | Clear | 600 cps | 16 h. | 20 min. | 10,650 psi | 200,000 psi | 26.7 cu. in./lb. | 1.036 g/cc | 100A:90B | 0.001 in. / in. | 2,500 psi | 10 % | 80 | 120 °F | 6,385 psi | 73,200 psi | 40,000 psi |
| Crystal Clear™ 206 | Clear | Clear | 600 cps | 7 days | 4.5 h. | 10,650 psi | 200,000 psi | 26.7 cu. in./lb. | 1.036 g/cc | 100A:90B | 0.002 in. / in. | 2,500 psi | 10 % | 80 | 120 °F | 6,385 psi | 73,200 psi | 40,000 psi |
| Crystal Clear™ 204 | Clear | Clear | 600 cps | 48 h. | 2 h. | 5,390 psi | 183,200 psi | 26.7 cu. in./lb. | 1.036 g/cc | 100A:90B | 0.002 in. / in. | 3,500 psi | 10 % | 80 | 120 °F | 4,200 psi | 86,240 psi | 44,000 psi |
| Crystal Clear™ 202 | Clear | Clear | 600 cps | 90 min. | 9 min. | 5,390 psi | 183,200 psi | 26.7 cu. in./lb. | 1.036 g/cc | 100A:90B | 0.0125 in. / in. | 3,500 psi | 10 % | 80 | 120 °F | 4,200 psi | 86,240 psi | 44,000 psi |
