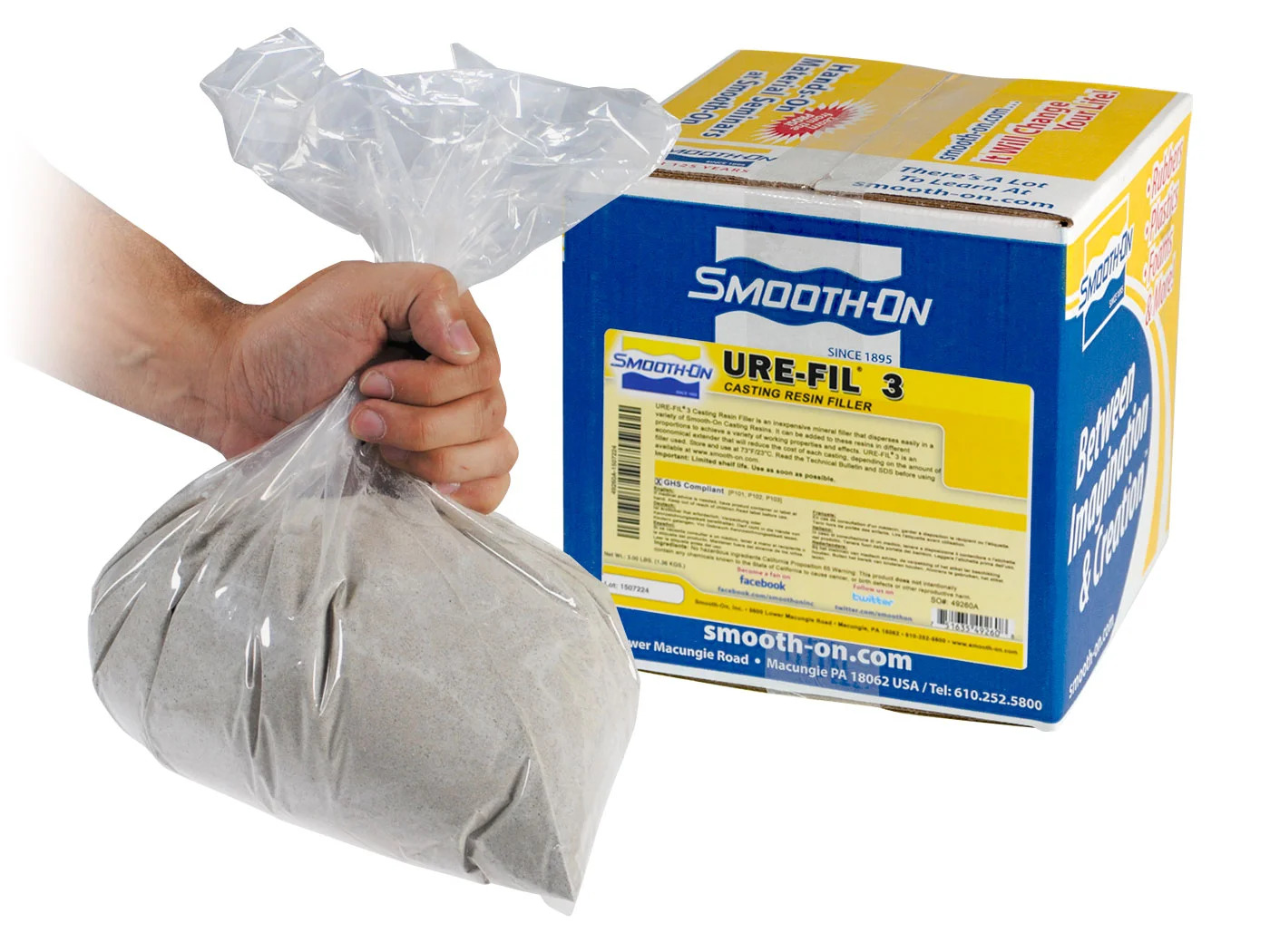

URE-FIL™ 3 is a ceramic filler for urethane resins and castable epoxies.
Reduces material cost
Recommended mix ratio: 1A:1B:1 filler
Improves consistency and strength
Helps prevent bubbling and foaming
URE-FIL™ fillers are designed to be mixed with urethane resins to modify their working properties, weight, texture, and appearance. These fillers can:
Available options include:
URE-FIL™ 3: Ceramic filler to reduce casting costs
URE-FIL™ 5: Filler for creating a wood-grain effect

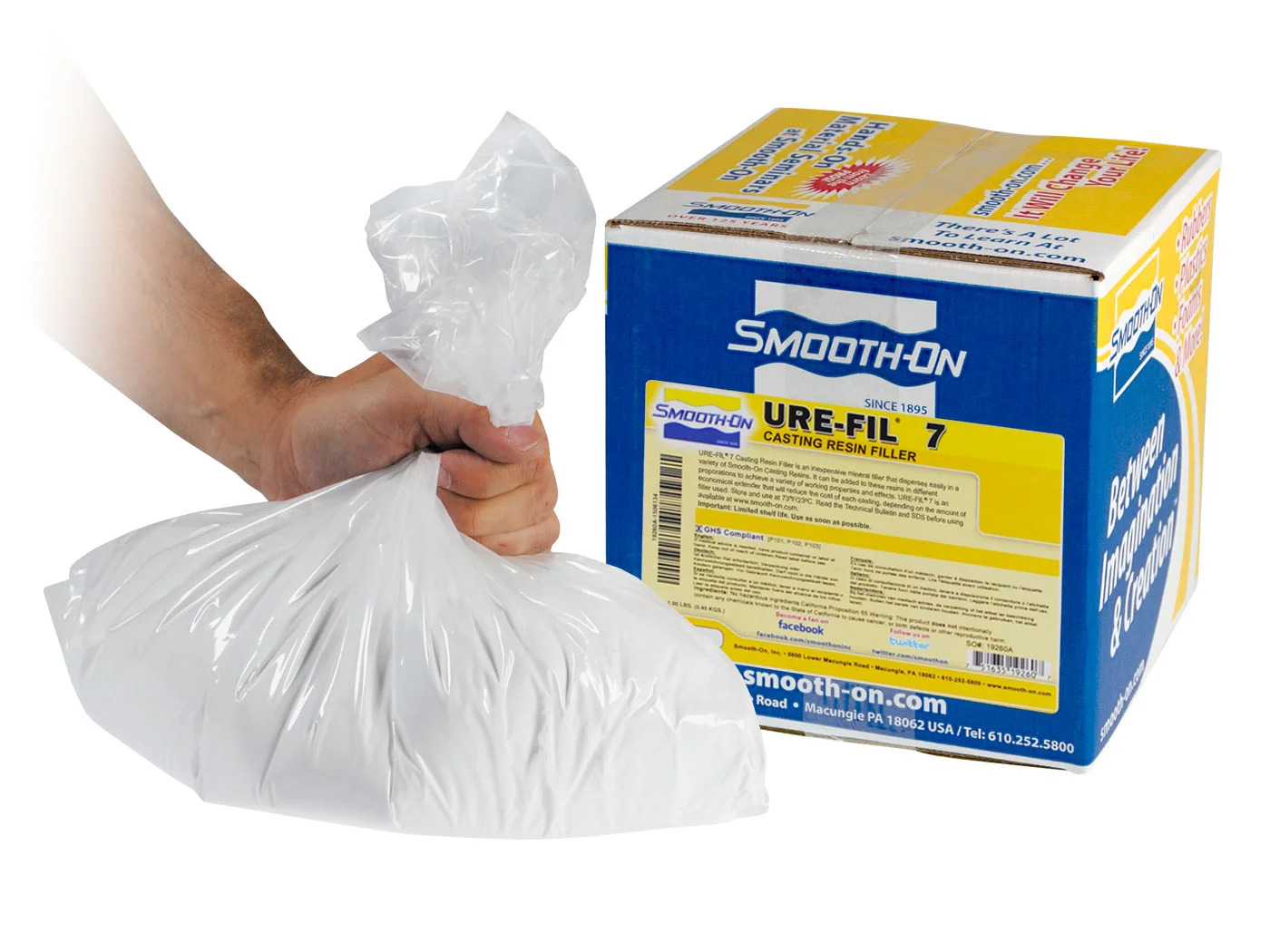

URE-FIL™ 7: Urethane filler for dimensional stability
URE-FIL™ 9: Fumed-silica based thickening agent
URE-FIL™ 11: Fiber filler for urethane and silicone
URE-FIL™ 13: Poly-blend filler for urethanes
URE-FIL™ 15: Micro-balloons to reduce casting weight…
URE-FIL™ 17: Aluminum pellet filler (400 micron)
URE-FIL™ 19: Aluminum pellet filler (1200 micron)
URE-FIL™ fillers are designed to be mixed with urethane resins to modify their working properties, weight, texture, and appearance.
When blended into urethane resin, they help control shrinkage and can influence the final surface finish, ranging from smooth to textured or stone-like effects. Different versions offer unique performance benefits, allowing customization for projects like casting props, producing rigid parts, or achieving realistic material effects.
URE-FIL™ 3 is a ceramic filler for urethane resins and castable epoxies.
Reduces material cost
Recommended mix ratio: 1A:1B:1 filler
Improves consistency and strength
Helps prevent bubbling and foaming

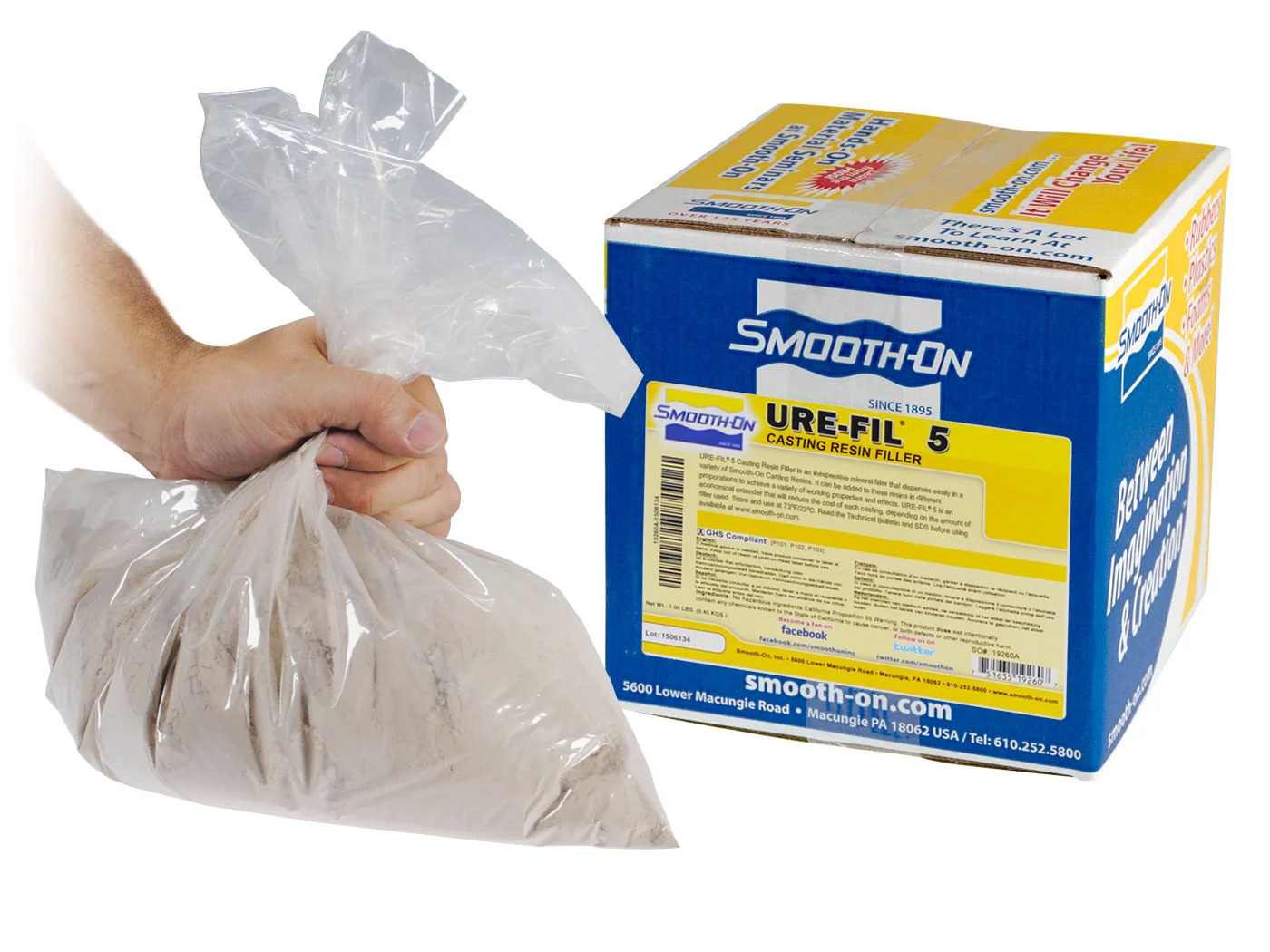

Create a realistic wood grain effect with this filler.
Mix 1 part filler with 1A:1B of Smooth-Cast™ 325 resin.
Ensure your mold has the desired wood grain pattern.
Apply wood stain or shoe polish after demolding.
Thoroughly disperse filler for uniform consistency.
Use 'double-mix and pour' for better results.
Enhance your resin projects with improved stability and unique effects.
Mixes with urethane resins and castable epoxies
Reduces shrinkage for better dimensional stability
Adds flame resistance to materials
Compatible with Smooth-Cast™ 325 and SO-Strong™ color tints
Creates marble effects in finished products

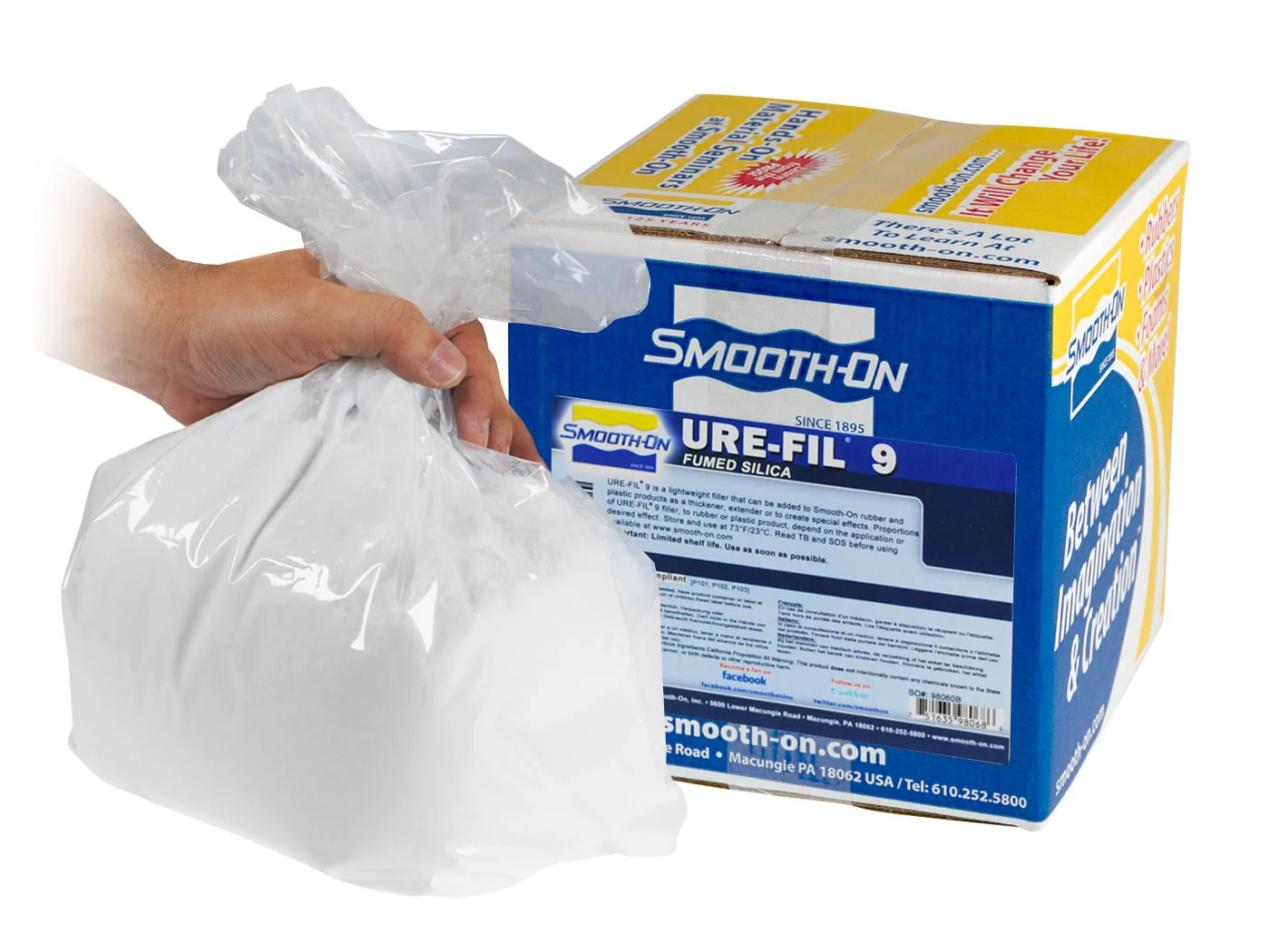

A fumed-silica-based thickening agent for liquid urethane and silicone rubbers in brush-on moldmaking.
Adjust viscosity by adding small amounts to mixed rubber.
Enhances casting effects in liquid urethane resins.
Suitable for trowelable casting applications.

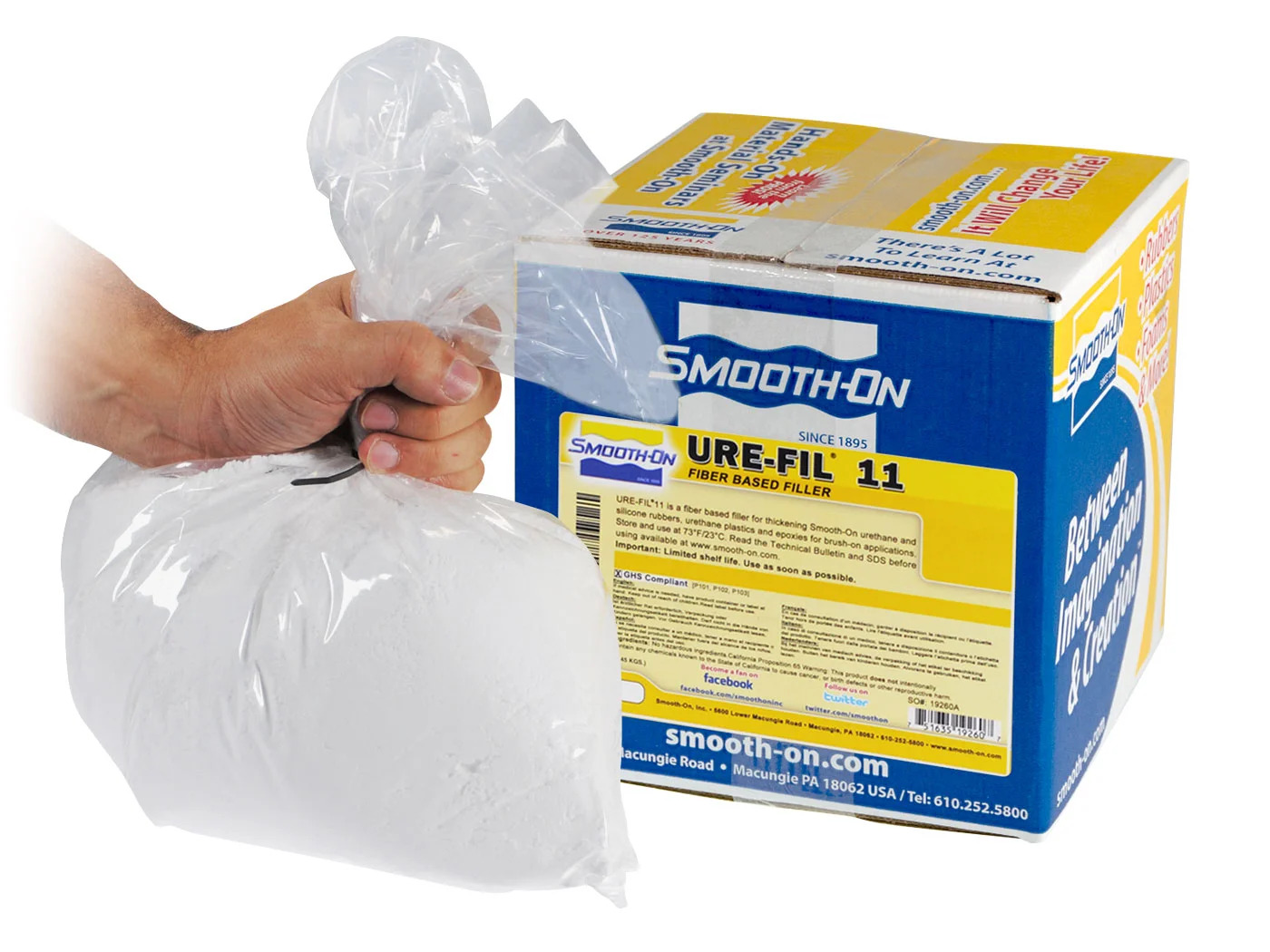

URE-FIL™ 11 is a fiber-based filler for thickening urethane and silicone rubbers, plastics, and epoxies.
Compatible with all Smooth-On silicones
Thickens materials for brush-on applications
Effective with Mold Max™ 40
Requires thorough mixing for uniform consistency
URE-FIL™ 13 is a poly-blend filler for thickening urethane plastics and epoxies.
Enhances strength in cured plastics.
Creates carveable and stampable finishes.
Ideal for vertical surface applications.
Commonly used with Simpact™ 80A for vine-making.
URE-FIL™ 15 micro-balloons are lightweight fillers for urethane plastics and epoxies.
Create lightweight castings that can float on water.
Forms syntactic foam, which is stiffer and more water-resistant than expanding foams.
Must be thoroughly mixed into liquid rubber or resin.
URE-FIL™ 17 are small grain aluminum pellets (400 micron).
Enhances thermal conductivity in urethane and epoxy resins.
Simulates the weight of metal in cold-castings.
Reduces exothermic temperatures during curing.
Creates metallic effects with clear and colored resins.
Not suitable for RTV rubber products.
Large grain aluminum pellets (1200 micron) for use in resin casting.
Enhances thermal conductivity in vacuum forming applications.
Adds weight to metal cold-castings for a solid feel.
Reduces exothermic temperatures during curing.
Creates metallic effects with clear and colored resins.
Not suitable for RTV rubber products.
| Product | Color |
|---|---|
| URE-FIL™ 3 | #bab5b5 |
| URE-FIL™ 5 | #ccc7c7 |
| URE-FIL™ 7 | - |
| URE-FIL™ 9 | - |
| URE-FIL™ 11 | #f8f7f7 |
| URE-FIL™ 13 | #e5e1e1 |
| URE-FIL™ 15 | #f2e8e8 |
| URE-FIL™ 17 | #b7b4b4 |
| URE-FIL™ 19 | #ada8a8 |
