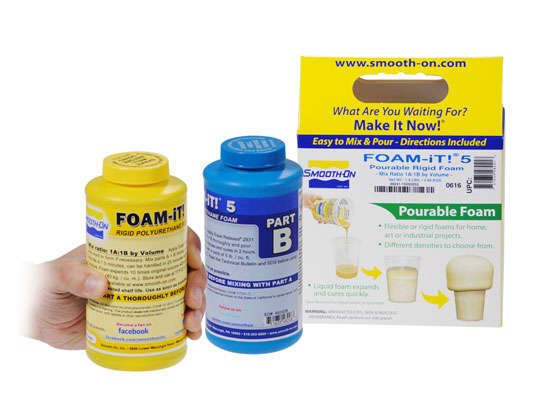

FOAM-iT!™ 5

FoamiT5pint ⓘ 9DD82125-CFA9-014F-858C-40685E0CBD51
FOAM-iT!™ Series / Polyurethane Rigid Foam

Medium-density rigid polyurethane foam with a balance of light weight and strength, and an expansion of approximately 10x.

  • Density: 80 kg/m³ (5 lb/ft³)
  • Mix ratio: 1A:1B by volume
  • Expansion approximately: 10 times
  • Demold time: 20-30 minutes
  • Full cure in 1-2 hours
exclamation.svg health-hazard.svg

Danger

H315 - Causes skin irritation.
H317 - May cause an allergic skin reaction.
H319 - Causes serious eye irritation.
H332 - Harmful if inhaled.
H334 - May cause allergy or asthma symptoms or breathing difficulties if inhaled.
€ 27.50

(€ 22.73 without 21% VAT)

In stock

Description

This medium-density rigid polyurethane expanding foam is designed for applications requiring a balance of light weight and strength. With a density of about 80 kg/m³ (5 lb/ft³), it offers superior compressive strength and durability compared to lower-density foams, while remaining easy to shape and finish. This makes it suitable for scenic, industrial, marine, and prototyping applications.

Features

  • Mix ratio: 1A:1B by volume for simple and consistent processing
  • Pot life: approximately 45–60 seconds
  • Expands to about 10 times its original liquid volume
  • Demold time: around 20–30 minutes
  • Full cure: generally achieved within 1–2 hours
  • Cream to off-white color when cured
  • Closed-cell structure with low water absorption and good dimensional stability
  • Can be cut, carved, drilled, sanded, or machined using standard tools
  • Accepts paints, coatings, epoxy or polyester resins, fiberglass laminates, and urethane skins

Due to its moderate density, good strength-to-weight ratio, and fast processing, it is widely used for scenic and theatrical set pieces, props, architectural details, flotation components, mock-ups, tooling masters, and void filling. It is an excellent option when a rigid foam stronger than very-low-density grades is needed, without the added weight and cost of high-density structural foams.

Instructions

  • Mix at a 1A:1B ratio by volume until uniform.
  • Pour within approximately 45–60 seconds of working time.
  • The foam expands about 10 times, so allow space in the mold.
  • Do not disturb during the rise.
  • Demold after approximately 20–30 minutes.
  • Full cure is achieved in about 1–2 hours.

Usage Tips

  • Use clean, dry molds and a release agent if needed.
  • Foam can be cut, carved, drilled, or sanded after curing.
  • Wear gloves, avoid moisture, and ensure good ventilation during use.

Specifications

Color Beige
Mixed Viscocity 300 cps
Cure Time 2 hours
Pot Life 1.5 minutes
Specific Volume 315 cu. in./lb.
Specific Gravity 0.08 g/cc
Expansion 10 times
Mix Ratio By Weight 100A:87B
Foam Density 5 lb/ft³
Mix Ratio By Volume 1A:1B
Tack Free Time 20 minutes
Available in FOAM-iT!™ Series / Polyurethane Rigid Foam
Product Color Color Mixed Viscocity Cure Time Pot Life Specific Volume Specific Gravity Expansion Mix Ratio By Weight Foam Density Mix Ratio By Volume Tack Free Time
FOAM-iT!™ 3 Beige Beige 200 cps 2 h. 1 minute 504 cu. in./lb. 0.05 g/cc 18 times 100A:87B 3 lb/ft³ 1A:1B 20 min.
FOAM-iT!™ 4 BLACK Black Black 300 cps 2 h. 1.5 min. 420 cu. in./lb. 0.06 g/cc 14 times 100A:87B 4 lb/ft³ 1A:1B 20 min.
FOAM-iT!™ 5 Beige Beige 300 cps 2 h. 1.5 min. 315 cu. in./lb. 0.08 g/cc 10 times 100A:87B 5 lb/ft³ 1A:1B 20 min.
FOAM-iT!™ 8 Off White Off White 300 cps 2 h. 1.5 min. 194 cu. in./lb. 0.13 g/cc 8 times 2A:1B 8 lb/ft³ - 20 min.
FOAM-iT!™ 10 Beige Beige 400 cps 2 h. 1.5 min. 157 cu. in./lb. 0.16 g/cc 6 times 100A:87B 10 lb/ft³ 1A:1B 20 min.
FOAM-iT!™ 10 SLOW Beige Beige 400 cps 4 h. 3.5 min. 157 cu. in./lb. 0.16 g/cc 6 times 100A:87B 10 lb/ft³ 1A:1B 1 h.
FOAM-iT!™ 15 Beige Beige 500 cps 2 h. 1.5 min. 105 cu. in./lb. 0.24 g/cc 4 times 100A:87B 15 lb/ft³ 1A:1B 20 min.
FOAM-iT!™ 26 White White 500 cps 2 h. 1.5 min. 60 cu. in./lb. 0.42 g/cc 2 times 100A:90B 26 lb/ft³ 1A:1B 20 min.
