Smooth-On is one of the worlds leading manufaturers 3D modeling materials such as mold-making, casting and special effects materials but also industrial casting resins, adhesives and equipment. FormX is main distributor of Smooth-On products in Europe.

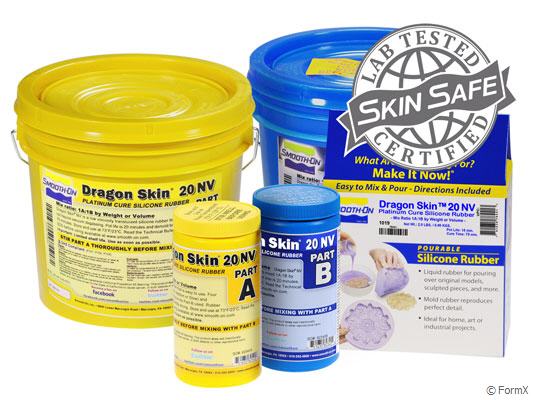

Dragon Skin™ Series silicones are high performance platinum cure silicone rubbers that can be mixed 1A:1B by weight or volume and cure at room temperature with negligible shrinkage. Cured Dragon Skin™ is very strong and very ''stretchy''. It will stretch many times its original size without tearing and will rebound to its original form without distortion.
Dragon Skin™is suitable for making high performance molds used for rapid prototyping, wax casting (foundries and candle makers), architectural restoration and for casting concrete. In addition, Dragon Skin™ is used in many special effects applications, especially animatronics where repetitive motion is required. It is water white translucent and will accept pigments for creating color effects. Because of the superior physical properties and flexibility of Dragon Skin™, it is also used for orthopedic & cushioning applications.

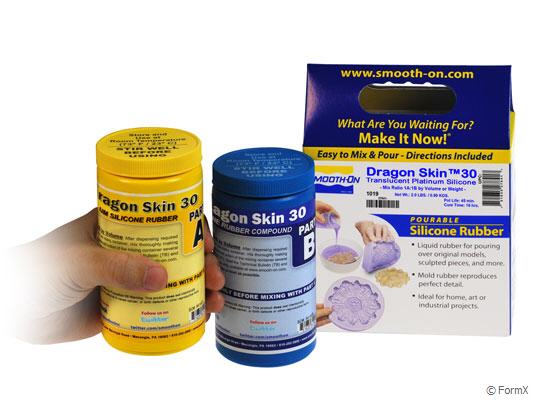

Dragon Skin™Series silicone rubbers are available in Shore hardnesses of 10A, 20A and 30A. In addition, the Dragon Skin™ 10 materials are available in SLOW, MEDIUM and FAST versions.
Certified Skin Safe - Cured Dragon Skin™ Series is skin safe and is certified by an independent laboratory. OECD TG 439 certification. No animals were used in testing.
Technical bulletin Dragon Skin series
Technical bulletin Dragon Skin FX Pro

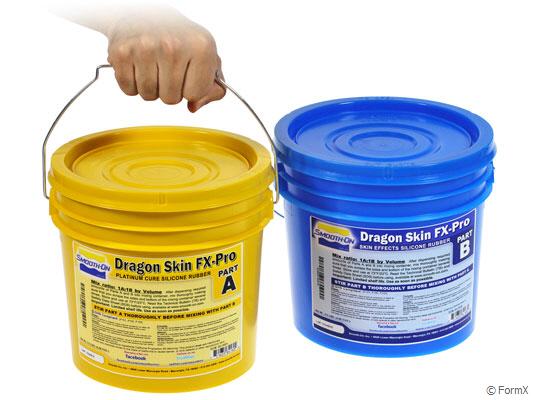

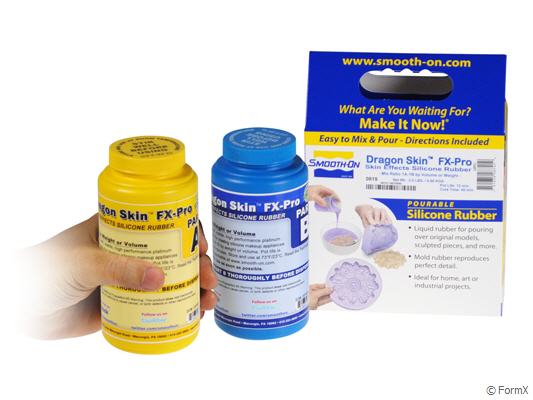

Dragon Skin® FX-Pro is a soft, stable, high performance platinum silicone rubber specifically designed for creating silicone makeup appliances and skin effects. Dragon Skin® FX-Pro is compatible with Skin-Tite® silicone adhesive as well as medical grade pressure sensitive adhesives for adhering silicone appliances temporarily to the skin.
Soft and stretchy FX-Pro has a Shore hardness of 2A. FX-Pro can be combined with SLACKER® deadening agent to create a very soft silicone gel for filling encapsulated silicone pieces. An infinite number of color effects can be achieved by adding Silc-Pig® silicone pigments. Cured rubber can also be painted with the Psycho Paint® system.
What Makes Dragon Skin™ FX-Pro Unique?
Soft • - Shore 2A hardness allows for softer appliances using less SLACKER® deadening agent
Low Viscosity • - combined with long working time reduces bubbles and makes pouring easier
Cures Dry • - will not leach silicone fluid
Long Working Time • - 10-12 minute working time is good for larger pours or injections
Fast Cure • - 40 minute cure time allows for quick turnaround of castings or molds
More Workable - Do More • - has a ‘gel’ stage - slushing the material into prosthetic molds is easier
Dragon Skin® FX Pro is mixed 1A:1B by weight or volume. Liquid rubber can be thinned with Silicone Thinner® or thickened with Thi-Vex® II. Rubber cures at room temperature (73°F / 23°C) with negligible shrinkage.
|type||working time / cure time||stretch||viscosity||hardness||Tear Strenght|
|DS-10 slow||45min/7hour||1000 %||23.000 cps||10 A||102 pli|
|DS-10 medium||20min/5hour||1000 %||23.000 cps||10 A||102 pli|
|DS-10 fast||8min/75min||1000%||23.000 cps||10 A||102 pli|

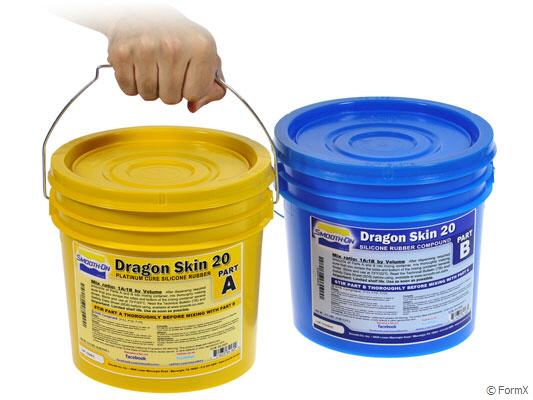

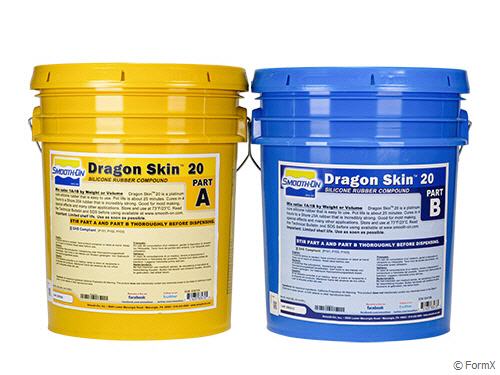

|DS-20||25min/4hour||620 %||20.000 cps||20 A||120 pli|

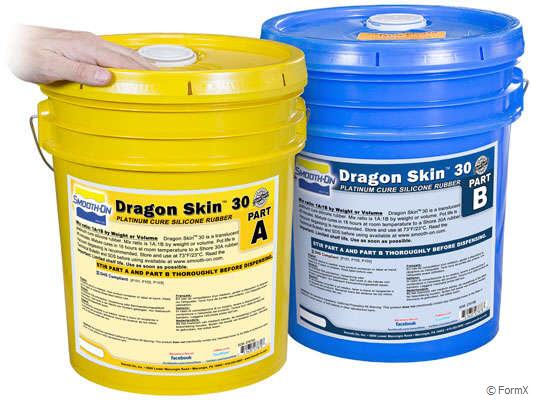

|DS-30||45min/16hour||364 %||30.000 cps||30 A||108 pli|
|DS FX-Pro||12min/40min||763 %||18.000 cps||2 A||61 pli|
Dragon Skin Series products are often pigmented and / or painted. Click the next tabs to find the right colorizing products.
