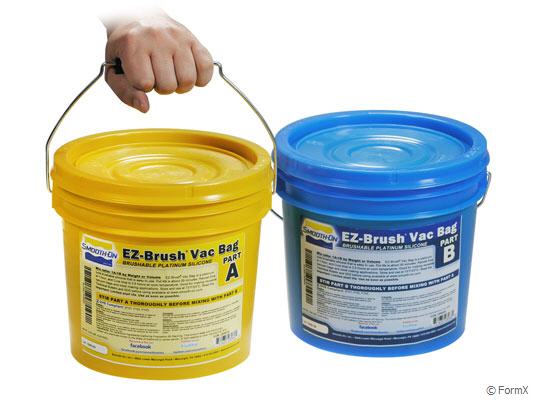

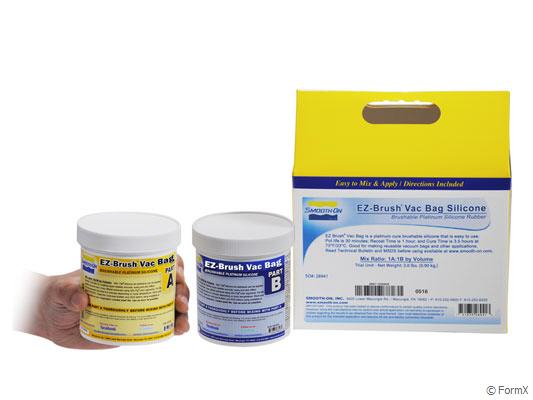

EZ-Brush™ Vac Bag Silicone
Buy Smooth-On at FormX
Smooth-On is one of the worlds leading manufaturers 3D modeling materials such as mold-making, casting and special effects materials but also industrial casting resins, adhesives and equipment. FormX is main distributor of Smooth-On products in Europe.
Brushable Platinum Silicone Rubber
EZ-Brush™ Vac Bag is a brushable, Platinum-Cure Silicone Rubber developed especially for fabricating reusable vacuum bags by hand. No spray equipment is required EZ-Brush™ Vac Bag Silicone has a 1A:1B by volume mix ratio and is easy to mix and apply. Mixed rubber is thixotropic and can be applied with a brush or spatula to vertical surfaces without sagging.

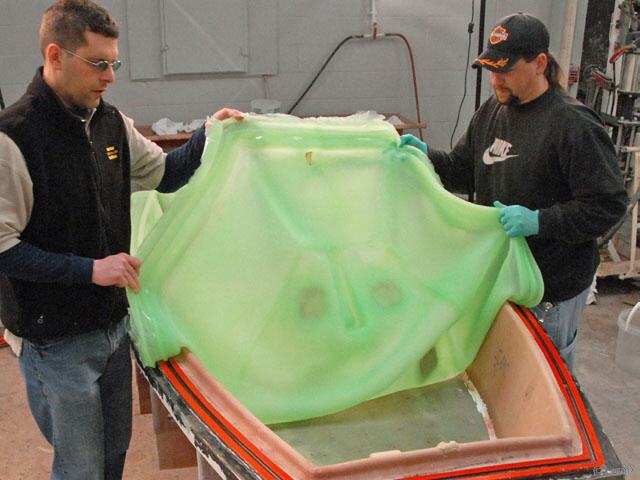

Production-ready vacuum bags can be fabricated fast using EZ-Brush™ Vac Bag Silicone resulting in tremendous time and labor savings. Since bags are reusable, long term material costs are greatly reduced.
Technical bulletin Ez Brush vacuum bagging silicone
EZ-Brush VB silicone
Easy Brush VB Silicone Table
| Product Name | A:B mixing Ratio | Demold Time | Elongation at Break | Mixed Viscosity | Pot Life | Shore A Hardness | Tear Strength | Weight cu.inch/lb |
|---|---|---|---|---|---|---|---|---|
| Easy Brush Vacuum Bagging Silicone | 1:1 volume | 3.5 hours | 364 % | 20.000 cps | 30 min | 20 | 120 pli | 25.7 |
Advantages of Silicone Vacuum Bags
Advantages of EZ-Brush™ Vac Bag: Fast – as low as 4 hours from bag fabrication to part production. Cost Effective Production after 8 cycles vs. consumable bags.
Reusable for hundreds of parts with polyester-based resins; upto 50 times with epoxy and 100 times when using pre-preg thermoplastic. Also suitable for de-bulk.
Reduce Labor – EZ-Brush™ Vac Bag is reset in minutes; no taping or pleating.
- Self-Releasing, no release agents required
- Perfect Fit even for complex shapes and undercuts
- Odorless – No solvents or VOC's
- High service temperature, up to 240°C
- Built-in Vacuum Seal.
- Ideal for Wet Lay-Up, Infusion, Pre-Preg (in or out of autoclave), and De-Bulk
Yield:
7,26 kg of EZ-Brush™ Vac Bag Silicone will cover 1,41 sq. meters area at 4.8 mm thick.
36,29 kg of EZ-Brush™ Vac Bag Silicone will cover 7,05 sq. meters area at 4.8 mm thick.
Easy Brush Vacuum Bag Silicone
wind blades
resin infusion
You might also need...
- Mixing Beakers
- Measuring Cups & Jars
- Weighting devices
- Brushes
- Protective Gear such as gloves
- Release agents
